Plotting guide

Prepare plotting data

Every plot uses the PheWAS result dataframe. Manhattan and enrichment plots also require a category column.

import pandas as pd
import pype
from pype.plotting import category_enrichment, manhattan, volcano

metadata = pd.DataFrame({
    "outcome": ["trait_a", "trait_b"],
    "description": ["Trait A", "Trait B"],
    "category": ["Measurements", "Diagnoses"],
})

results = pype.add_phenotype_metadata(results, metadata)

Plot gallery

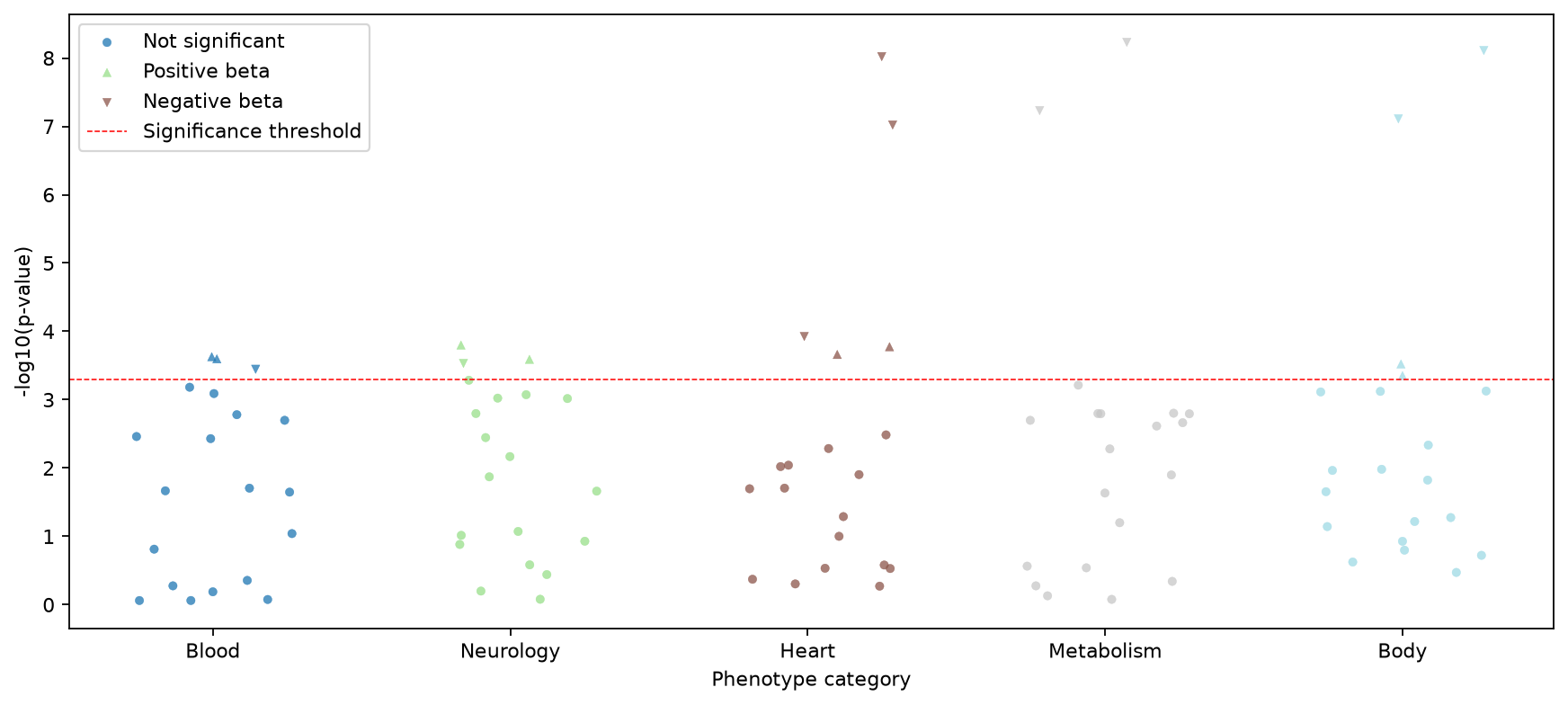

Example PYPE Manhattan plot grouped into five phenotype categories. — **Manhattan plot.** Categories define the x-axis. Marker direction shows the sign of beta. Open full-resolution image

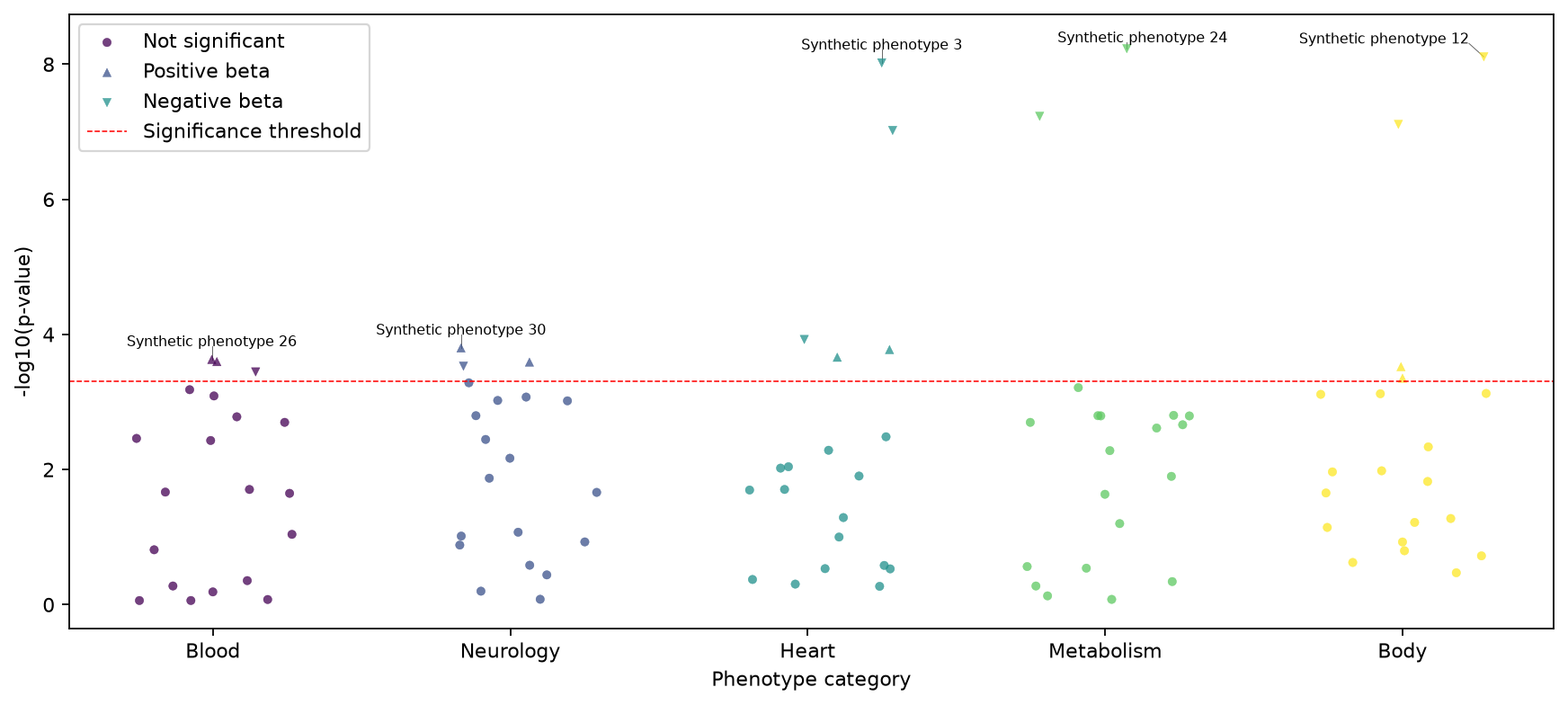

Annotated PYPE Manhattan plot using a different color map. — **Annotated Manhattan plot.** The top significant result in each category is labeled. Open full-resolution image

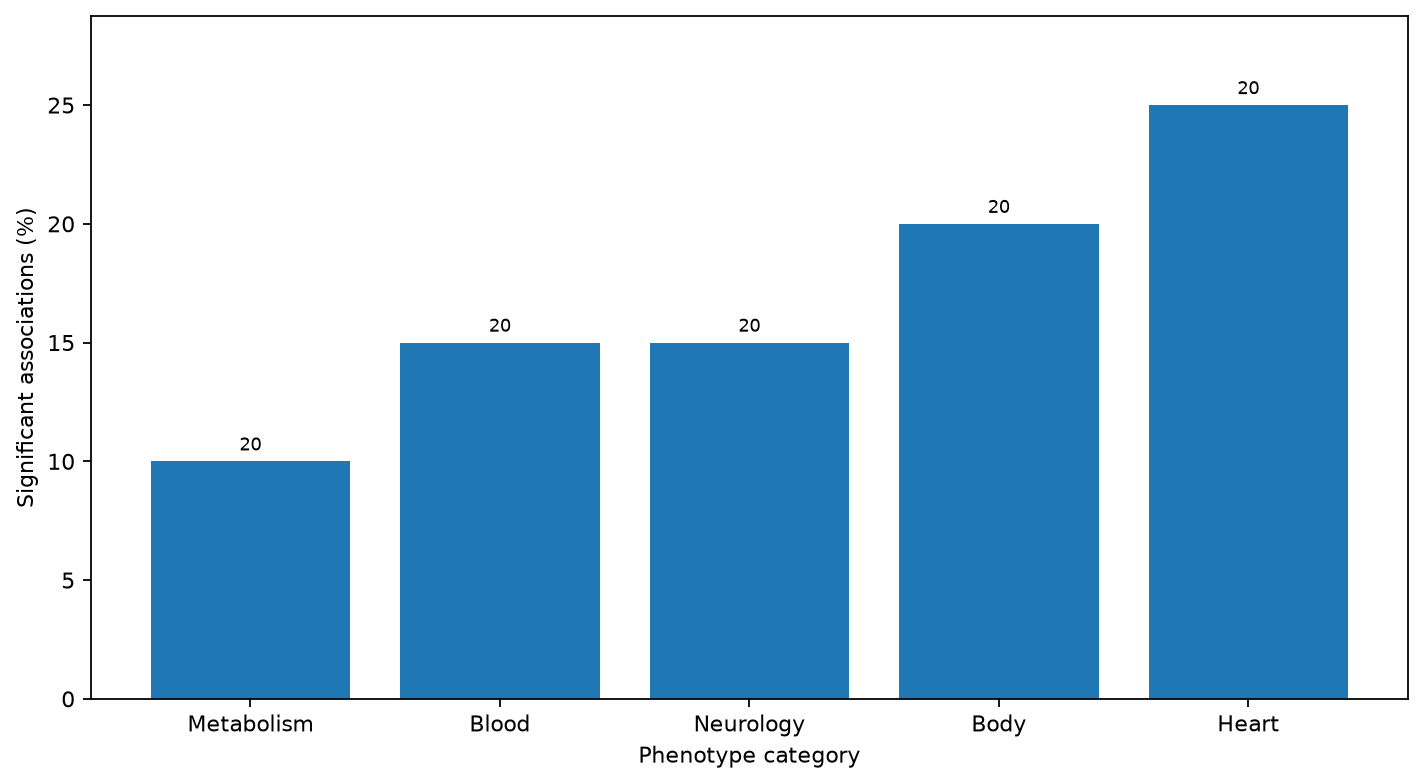

PYPE category enrichment bar plot. — **Category enrichment.** Bar height is the percentage of significant associations; labels show total tests. Open full-resolution image

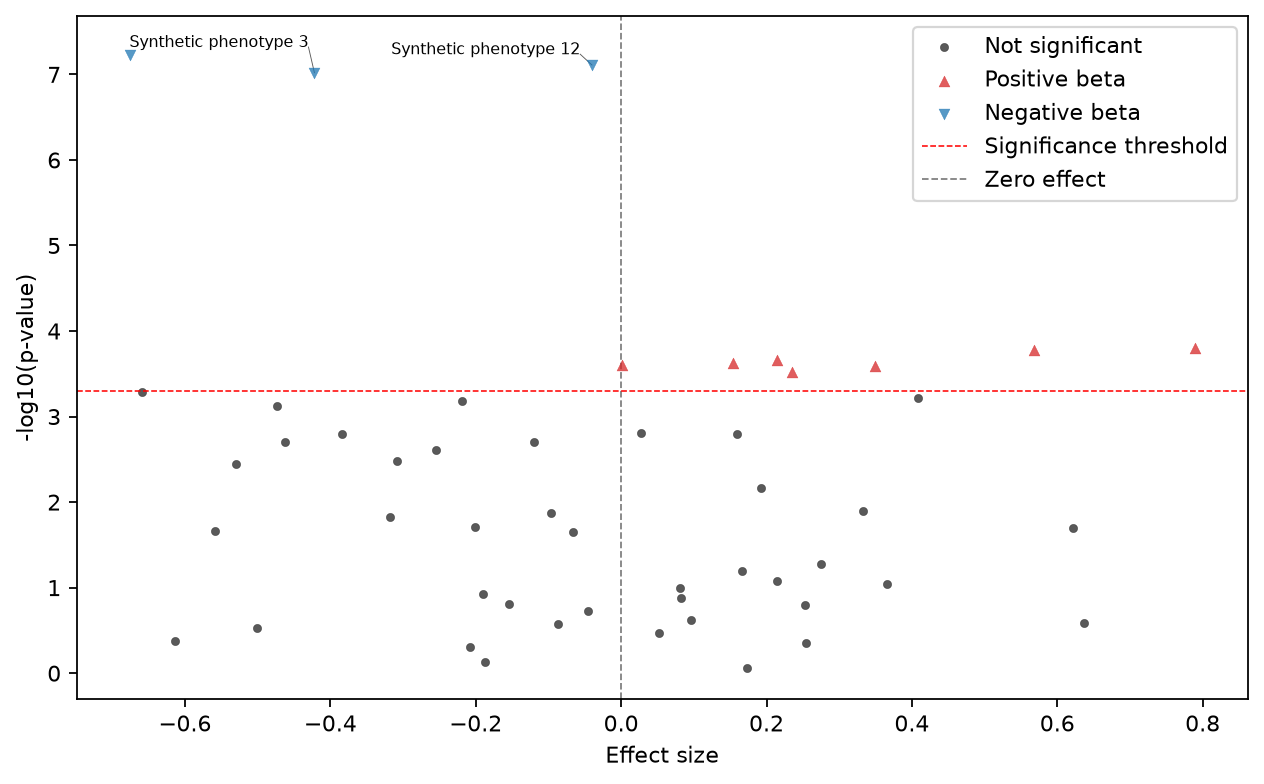

PYPE volcano plot showing effect size and significance. — **Volcano plot.** Effect size is on the x-axis and significance is on the y-axis. The red horizontal line is the corrected significance threshold, and the gray vertical line marks zero effect. Open full-resolution image

Gallery data are synthetic and generated by scripts/generate_docs_plots.py.

Annotations are allocated against plotted points, plot boundaries, and significance or zero-effect reference lines. If every requested label cannot be placed without overlap, PYPE draws the collision-free subset.

Manhattan plots

manhattan(
    results,
    "manhattan.png",
    alpha=0.05,
    correction="bonferroni",
    title="Phenome-wide associations",
    annotate=True,
    annotation_count=2,
    annotation_width=24,
    color_map="viridis",
    seed=0,
    width=12,
    height=6,
    dpi=200,
)

Option	Effect
`correction`	`bonferroni`, `sidak`, `fdr_bh`, or `no_correction`.
`annotate`	Add labels to the most significant rows in each category.
`annotation_count`	Maximum labels per category.
`annotation_width`	Maximum characters per wrapped annotation line.
`color_map`	Any Matplotlib color map name.
`seed`	Make horizontal jitter repeatable.
`width`, `height`, `dpi`	Control output dimensions and resolution.

Category enrichment

category_enrichment(
    results,
    "category_enrichment.svg",
    correction="fdr_bh",
    title="Significant associations by category",
    width=10,
    height=5,
)

Use this plot to compare the fraction of tested associations that pass the selected threshold. Interpret small categories carefully because one result can produce a large percentage.

Volcano plots

paths = volcano(
    results,
    "volcano.png",
    correction="bonferroni",
    title="Predictor associations",
    annotate=True,
    annotation_count=5,
    annotation_width=24,
    width=9,
    height=6,
)

One image is written for each value in predictor. The returned list contains those image paths.

Additional output files

Manhattan: <name>_significant_results.tsv.
Volcano: one .tsv and one image per predictor.
Category enrichment: the requested image only.

Presentation guidance

Use SVG or PDF for publication figures that may be resized.
Use a fixed seed when comparing versions of a jittered Manhattan plot.
Limit annotations to the results discussed in the text.
Report the correction method and alpha in the figure caption.
Keep the underlying TSV output with the figure.
